세로 프로그래스바(Vertical SeekBar)
가로로 커스터 마이징한 프로그래스바(SeekBar)에 대해서는 전 강좌에서 설명한 적이 있다.
가로에 대한 설명은
http://ememomo.tistory.com/entry/커스톰RatingBarProgressBar
이부분을 참고하시기 바란다.
이번에 소개할 내용은 이 프로그래스바를 세로로 커스터 마이징 하는 것이다. 필자도 인터넷에 떠도는 소스를 가지고 튜닝해서
사용했다. 만드는 방법은 어렵지만 사용법은 간단하므로 따라해 보길 바란다.
직접적으로 컨트롤할 부분은 사용할 Activity 내에서만 잘 정의해 주면 되므로 어려울 것이 없다.

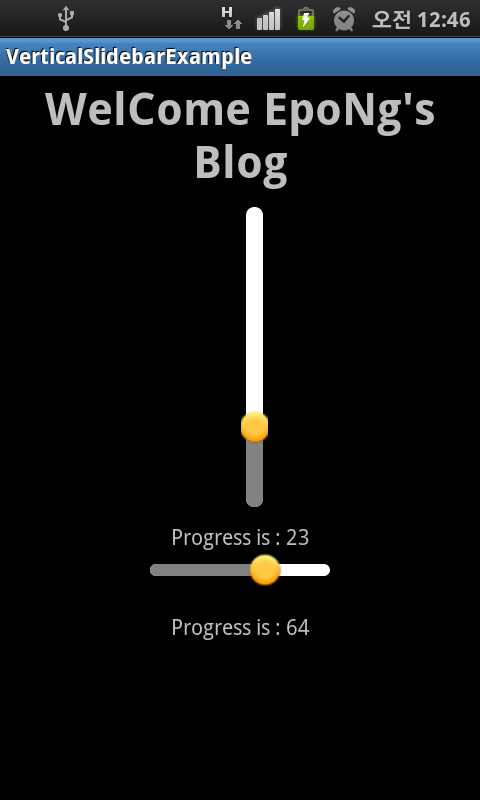

실행화면을 먼저 보여 주자면
이런 모습으로 만들 수 있다.
만든 모습을 보면 총 3개의 Java 파일을 이용한다. 먼저 View를 상속한 클래스 두개를 이용하여 만든다. 1. VerticalProgressBar.Java
package com.ememomo.tistory;
import com.tokaracamara.android.verticalslidevar.R;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.graphics.Rect;
import android.graphics.drawable.BitmapDrawable;
import android.graphics.drawable.ClipDrawable;
import android.graphics.drawable.Drawable;
import android.graphics.drawable.LayerDrawable;
import android.graphics.drawable.ShapeDrawable;
import android.graphics.drawable.StateListDrawable;
import android.graphics.drawable.shapes.RoundRectShape;
import android.graphics.drawable.shapes.Shape;
import android.util.AttributeSet;
import android.util.Log;
import android.view.Gravity;
import android.view.View;
import android.view.ViewDebug;
import android.view.ViewParent;
import android.widget.RemoteViews.RemoteView;
import android.os.Parcel;
import android.os.Parcelable;
@RemoteView
public class VerticalProgressBar extends View {
private static final int MAX_LEVEL = 10000;
int mMinWidth;
int mMaxWidth;
int mMinHeight;
int mMaxHeight;
private int mProgress;
private int mSecondaryProgress;
private int mMax;
private Drawable mProgressDrawable;
private Drawable mCurrentDrawable;
Bitmap mSampleTile;
private boolean mNoInvalidate;
private RefreshProgressRunnable mRefreshProgressRunnable;
private long mUiThreadId;
private boolean mInDrawing;
protected int mScrollX;
protected int mScrollY;
protected int mPaddingLeft;
protected int mPaddingRight;
protected int mPaddingTop;
protected int mPaddingBottom;
protected ViewParent mParent;
/**
* Create a new progress bar with range 0...100 and initial progress of 0.
* @param context the application environment
*/
public VerticalProgressBar(Context context) {
this(context, null);
}
public VerticalProgressBar(Context context, AttributeSet attrs) {
this(context, attrs, android.R.attr.progressBarStyle);
}
public VerticalProgressBar(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
mUiThreadId = Thread.currentThread().getId();
initProgressBar();
TypedArray a =
context.obtainStyledAttributes(attrs, R.styleable.ProgressBar, defStyle, 0);
mNoInvalidate = true;
Drawable drawable = a.getDrawable(R.styleable.ProgressBar_android_progressDrawable);
if (drawable != null) {
drawable = tileify(drawable, false);
// Calling this method can set mMaxHeight, make sure the corresponding
// XML attribute for mMaxHeight is read after calling this method
setProgressDrawable(drawable);
}
mMinWidth = a.getDimensionPixelSize(R.styleable.ProgressBar_android_minWidth, mMinWidth);
mMaxWidth = a.getDimensionPixelSize(R.styleable.ProgressBar_android_maxWidth, mMaxWidth);
mMinHeight = a.getDimensionPixelSize(R.styleable.ProgressBar_android_minHeight, mMinHeight);
mMaxHeight = a.getDimensionPixelSize(R.styleable.ProgressBar_android_maxHeight, mMaxHeight);
setMax(a.getInt(R.styleable.ProgressBar_android_max, mMax));
setProgress(a.getInt(R.styleable.ProgressBar_android_progress, mProgress));
setSecondaryProgress(
a.getInt(R.styleable.ProgressBar_android_secondaryProgress, mSecondaryProgress));
mNoInvalidate = false;
a.recycle();
}
/**
* Converts a drawable to a tiled version of itself. It will recursively
* traverse layer and state list drawables.
*/
private Drawable tileify(Drawable drawable, boolean clip) {
if (drawable instanceof LayerDrawable) {
LayerDrawable background = (LayerDrawable) drawable;
final int N = background.getNumberOfLayers();
Drawable[] outDrawables = new Drawable[N];
for (int i = 0; i < N; i++) {
int id = background.getId(i);
outDrawables[i] = tileify(background.getDrawable(i),
(id == android.R.id.progress || id == android.R.id.secondaryProgress));
}
LayerDrawable newBg = new LayerDrawable(outDrawables);
for (int i = 0; i < N; i++) {
newBg.setId(i, background.getId(i));
}
return newBg;
} else if (drawable instanceof StateListDrawable) {
StateListDrawable in = (StateListDrawable) drawable;
StateListDrawable out = new StateListDrawable();
/*int numStates = in.getStateCount();
for (int i = 0; i < numStates; i++) {
out.addState(in.getStateSet(i), tileify(in.getStateDrawable(i), clip));
}*/
return out;
} else if (drawable instanceof BitmapDrawable) {
final Bitmap tileBitmap = ((BitmapDrawable) drawable).getBitmap();
if (mSampleTile == null) {
mSampleTile = tileBitmap;
}
final ShapeDrawable shapeDrawable = new ShapeDrawable(getDrawableShape());
return (clip) ? new ClipDrawable(shapeDrawable, Gravity.LEFT,
ClipDrawable.HORIZONTAL) : shapeDrawable;
}
return drawable;
}
Shape getDrawableShape() {
final float[] roundedCorners = new float[] { 5, 5, 5, 5, 5, 5, 5, 5 };
return new RoundRectShape(roundedCorners, null, null);
}
/**
*
* Initialize the progress bar's default values:
*
* -
*
- progress = 0 *
- max = 100 *
Get the drawable used to draw the progress bar in * progress mode.
* * @return a {@link android.graphics.drawable.Drawable} instance * * @see #setProgressDrawable(android.graphics.drawable.Drawable) */ public Drawable getProgressDrawable() { return mProgressDrawable; } /** *Define the drawable used to draw the progress bar in * progress mode.
* * @param d the new drawable * * @see #getProgressDrawable() */ public void setProgressDrawable(Drawable d) { if (d != null) { d.setCallback(this); // Make sure the ProgressBar is always tall enough int drawableHeight = d.getMinimumHeight(); if (mMaxHeight < drawableHeight) { mMaxHeight = drawableHeight; requestLayout(); } } mProgressDrawable = d; mCurrentDrawable = d; postInvalidate(); } /** * @return The drawable currently used to draw the progress bar */ Drawable getCurrentDrawable() { return mCurrentDrawable; } @Override protected boolean verifyDrawable(Drawable who) { return who == mProgressDrawable || super.verifyDrawable(who); } @Override public void postInvalidate() { if (!mNoInvalidate) { super.postInvalidate(); } } private class RefreshProgressRunnable implements Runnable { private int mId; private int mProgress; private boolean mFromUser; RefreshProgressRunnable(int id, int progress, boolean fromUser) { mId = id; mProgress = progress; mFromUser = fromUser; } public void run() { doRefreshProgress(mId, mProgress, mFromUser); // Put ourselves back in the cache when we are done mRefreshProgressRunnable = this; } public void setup(int id, int progress, boolean fromUser) { mId = id; mProgress = progress; mFromUser = fromUser; } } private synchronized void doRefreshProgress(int id, int progress, boolean fromUser) { float scale = mMax > 0 ? (float) progress / (float) mMax : 0; final Drawable d = mCurrentDrawable; if (d != null) { Drawable progressDrawable = null; if (d instanceof LayerDrawable) { progressDrawable = ((LayerDrawable) d).findDrawableByLayerId(id); } final int level = (int) (scale * MAX_LEVEL); (progressDrawable != null ? progressDrawable : d).setLevel(level); } else { invalidate(); } if (id == android.R.id.progress) { onProgressRefresh(scale, fromUser); } } void onProgressRefresh(float scale, boolean fromUser) { } private synchronized void refreshProgress(int id, int progress, boolean fromUser) { if (mUiThreadId == Thread.currentThread().getId()) { doRefreshProgress(id, progress, fromUser); } else { RefreshProgressRunnable r; if (mRefreshProgressRunnable != null) { // Use cached RefreshProgressRunnable if available r = mRefreshProgressRunnable; // Uncache it mRefreshProgressRunnable = null; r.setup(id, progress, fromUser); } else { // Make a new one r = new RefreshProgressRunnable(id, progress, fromUser); } post(r); } } /** *Set the current progress to the specified value.
* * @param progress the new progress, between 0 and {@link #getMax()} * * @see #getProgress() * @see #incrementProgressBy(int) */ public synchronized void setProgress(int progress) { setProgress(progress, false); } synchronized void setProgress(int progress, boolean fromUser) { if (progress < 0) { progress = 0; } if (progress > mMax) { progress = mMax; } if (progress != mProgress) { mProgress = progress; refreshProgress(android.R.id.progress, mProgress, fromUser); } } /** ** Set the current secondary progress to the specified value. *
* * @param secondaryProgress the new secondary progress, between 0 and {@link #getMax()} * @see #getSecondaryProgress() * @see #incrementSecondaryProgressBy(int) */ public synchronized void setSecondaryProgress(int secondaryProgress) { if (secondaryProgress < 0) { secondaryProgress = 0; } if (secondaryProgress > mMax) { secondaryProgress = mMax; } if (secondaryProgress != mSecondaryProgress) { mSecondaryProgress = secondaryProgress; refreshProgress(android.R.id.secondaryProgress, mSecondaryProgress, false); } } /** *Get the progress bar's current level of progress.
* * @return the current progress, between 0 and {@link #getMax()} * * @see #setProgress(int) * @see #setMax(int) * @see #getMax() */ @ViewDebug.ExportedProperty public synchronized int getProgress() { return mProgress; } /** *Get the progress bar's current level of secondary progress.
* * @return the current secondary progress, between 0 and {@link #getMax()} * * @see #setSecondaryProgress(int) * @see #setMax(int) * @see #getMax() */ @ViewDebug.ExportedProperty public synchronized int getSecondaryProgress() { return mSecondaryProgress; } /** *Return the upper limit of this progress bar's range.
* * @return a positive integer * * @see #setMax(int) * @see #getProgress() * @see #getSecondaryProgress() */ @ViewDebug.ExportedProperty public synchronized int getMax() { return mMax; } /** *Set the range of the progress bar to 0...max.
* * @param max the upper range of this progress bar * * @see #getMax() * @see #setProgress(int) * @see #setSecondaryProgress(int) */ public synchronized void setMax(int max) { if (max < 0) { max = 0; } if (max != mMax) { mMax = max; postInvalidate(); if (mProgress > max) { mProgress = max; refreshProgress(android.R.id.progress, mProgress, false); } } } /** *Increase the progress bar's progress by the specified amount.
* * @param diff the amount by which the progress must be increased * * @see #setProgress(int) */ public synchronized final void incrementProgressBy(int diff) { setProgress(mProgress + diff); } /** *Increase the progress bar's secondary progress by the specified amount.
* * @param diff the amount by which the secondary progress must be increased * * @see #setSecondaryProgress(int) */ public synchronized final void incrementSecondaryProgressBy(int diff) { setSecondaryProgress(mSecondaryProgress + diff); } @Override public void setVisibility(int v) { if (getVisibility() != v) { super.setVisibility(v); } } @Override public void invalidateDrawable(Drawable dr) { if (!mInDrawing) { if (verifyDrawable(dr)) { final Rect dirty = dr.getBounds(); final int scrollX = mScrollX + mPaddingLeft; final int scrollY = mScrollY + mPaddingTop; invalidate(dirty.left + scrollX, dirty.top + scrollY, dirty.right + scrollX, dirty.bottom + scrollY); } else { super.invalidateDrawable(dr); } } } @Override protected void onSizeChanged(int w, int h, int oldw, int oldh) { // onDraw will translate the canvas so we draw starting at 0,0 int right = w - mPaddingRight - mPaddingLeft; int bottom = h - mPaddingBottom - mPaddingTop; if (mProgressDrawable != null) { mProgressDrawable.setBounds(0, 0, right, bottom); } } @Override protected synchronized void onDraw(Canvas canvas) { super.onDraw(canvas); Drawable d = mCurrentDrawable; if (d != null) { // Translate canvas so a indeterminate circular progress bar with padding // rotates properly in its animation canvas.save(); canvas.translate(mPaddingLeft, mPaddingTop); d.draw(canvas); canvas.restore(); } } @Override protected synchronized void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { Drawable d = mCurrentDrawable; int dw = 0; int dh = 0; if (d != null) { dw = Math.max(mMinWidth, Math.min(mMaxWidth, d.getIntrinsicWidth())); dh = Math.max(mMinHeight, Math.min(mMaxHeight, d.getIntrinsicHeight())); } dw += mPaddingLeft + mPaddingRight; dh += mPaddingTop + mPaddingBottom; setMeasuredDimension(resolveSize(dw, widthMeasureSpec), resolveSize(dh, heightMeasureSpec)); } @Override protected void drawableStateChanged() { super.drawableStateChanged(); int[] state = getDrawableState(); if (mProgressDrawable != null && mProgressDrawable.isStateful()) { mProgressDrawable.setState(state); } } static class SavedState extends BaseSavedState { int progress; int secondaryProgress; /** * Constructor called from {@link ProgressBar#onSaveInstanceState()} */ SavedState(Parcelable superState) { super(superState); } /** * Constructor called from {@link #CREATOR} */ private SavedState(Parcel in) { super(in); progress = in.readInt(); secondaryProgress = in.readInt(); } @Override public void writeToParcel(Parcel out, int flags) { super.writeToParcel(out, flags); out.writeInt(progress); out.writeInt(secondaryProgress); } public static final Parcelable.Creator리스너를 정의한 클래스이다. VerticalSeekBar.Java
package com.ememomo.tistory; import android.content.Context; import android.util.AttributeSet; /** * A SeekBar is an extension of ProgressBar that adds a draggable thumb. The user can touch * the thumb and drag left or right to set the current progress level or use the arrow keys. * Placing focusable widgets to the left or right of a SeekBar is discouraged. *두개의 클래스를 이용하여 기능을 정의하는 클래스 AbsVerticalSeekBar.Java* Clients of the SeekBar can attach a {@link SeekBar.OnSeekBarChangeListener} to * be notified of the user's actions. * * @attr ref android.R.styleable#SeekBar_thumb */ public class VerticalSeekBar extends AbsVerticalSeekBar { /** * A callback that notifies clients when the progress level has been * changed. This includes changes that were initiated by the user through a * touch gesture or arrow key/trackball as well as changes that were initiated * programmatically. */ public interface OnSeekBarChangeListener { /** * Notification that the progress level has changed. Clients can use the fromUser parameter * to distinguish user-initiated changes from those that occurred programmatically. * * @param seekBar The SeekBar whose progress has changed * @param progress The current progress level. This will be in the range 0..max where max * was set by {@link ProgressBar#setMax(int)}. (The default value for max is 100.) * @param fromUser True if the progress change was initiated by the user. */ void onProgressChanged(VerticalSeekBar seekBar, int progress, boolean fromUser); /** * Notification that the user has started a touch gesture. Clients may want to use this * to disable advancing the seekbar. * @param seekBar The SeekBar in which the touch gesture began */ void onStartTrackingTouch(VerticalSeekBar seekBar); /** * Notification that the user has finished a touch gesture. Clients may want to use this * to re-enable advancing the seekbar. * @param seekBar The SeekBar in which the touch gesture began */ void onStopTrackingTouch(VerticalSeekBar seekBar); } private OnSeekBarChangeListener mOnSeekBarChangeListener; public VerticalSeekBar(Context context) { this(context, null); } public VerticalSeekBar(Context context, AttributeSet attrs) { this(context, attrs, android.R.attr.seekBarStyle); } public VerticalSeekBar(Context context, AttributeSet attrs, int defStyle) { super(context, attrs, defStyle); } @Override void onProgressRefresh(float scale, boolean fromUser) { super.onProgressRefresh(scale, fromUser); if (mOnSeekBarChangeListener != null) { mOnSeekBarChangeListener.onProgressChanged(this, getProgress(), fromUser); } } /** * Sets a listener to receive notifications of changes to the SeekBar's progress level. Also * provides notifications of when the user starts and stops a touch gesture within the SeekBar. * * @param l The seek bar notification listener * * @see SeekBar.OnSeekBarChangeListener */ public void setOnSeekBarChangeListener(OnSeekBarChangeListener l) { mOnSeekBarChangeListener = l; } @Override void onStartTrackingTouch() { if (mOnSeekBarChangeListener != null) { mOnSeekBarChangeListener.onStartTrackingTouch(this); } } @Override void onStopTrackingTouch() { if (mOnSeekBarChangeListener != null) { mOnSeekBarChangeListener.onStopTrackingTouch(this); } } }
package com.ememomo.tistory;
import com.tokaracamara.android.verticalslidevar.R;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Rect;
import android.graphics.drawable.Drawable;
import android.util.AttributeSet;
import android.util.Log;
import android.view.KeyEvent;
import android.view.MotionEvent;
public class AbsVerticalSeekBar extends VerticalProgressBar{
private Drawable mThumb;
private int mThumbOffset;
/**
* On touch, this offset plus the scaled value from the position of the
* touch will form the progress value. Usually 0.
*/
float mTouchProgressOffset;
/**
* Whether this is user seekable.
*/
boolean mIsUserSeekable = true;
/**
* On key presses (right or left), the amount to increment/decrement the
* progress.
*/
private int mKeyProgressIncrement = 1;
private static final int NO_ALPHA = 0xFF;
private float mDisabledAlpha;
public AbsVerticalSeekBar(Context context) {
super(context);
}
public AbsVerticalSeekBar(Context context, AttributeSet attrs) {
super(context, attrs);
}
public AbsVerticalSeekBar(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
TypedArray a = context.obtainStyledAttributes(attrs,
R.styleable.SeekBar, defStyle, 0);
Drawable thumb = a.getDrawable(R.styleable.SeekBar_android_thumb);
setThumb(thumb); // will guess mThumbOffset if thumb != null...
// ...but allow layout to override this
int thumbOffset =
a.getDimensionPixelOffset(R.styleable.SeekBar_android_thumbOffset, getThumbOffset());
setThumbOffset(thumbOffset);
a.recycle();
a = context.obtainStyledAttributes(attrs,
R.styleable.Theme, 0, 0);
mDisabledAlpha = a.getFloat(R.styleable.Theme_android_disabledAlpha, 0.5f);
a.recycle();
}
/**
* Sets the thumb that will be drawn at the end of the progress meter within the SeekBar.
*
* If the thumb is a valid drawable (i.e. not null), half its width will be
* used as the new thumb offset (@see #setThumbOffset(int)).
*
* @param thumb Drawable representing the thumb
*/
public void setThumb(Drawable thumb) {
if (thumb != null) {
thumb.setCallback(this);
// Assuming the thumb drawable is symmetric, set the thumb offset
// such that the thumb will hang halfway off either edge of the
// progress bar.
mThumbOffset = (int)thumb.getIntrinsicHeight() / 2;
}
mThumb = thumb;
invalidate();
}
/**
* @see #setThumbOffset(int)
*/
public int getThumbOffset() {
return mThumbOffset;
}
/**
* Sets the thumb offset that allows the thumb to extend out of the range of
* the track.
*
* @param thumbOffset The offset amount in pixels.
*/
public void setThumbOffset(int thumbOffset) {
mThumbOffset = thumbOffset;
invalidate();
}
/**
* Sets the amount of progress changed via the arrow keys.
*
* @param increment The amount to increment or decrement when the user
* presses the arrow keys.
*/
public void setKeyProgressIncrement(int increment) {
mKeyProgressIncrement = increment < 0 ? -increment : increment;
}
/**
* Returns the amount of progress changed via the arrow keys.
*
* By default, this will be a value that is derived from the max progress.
*
* @return The amount to increment or decrement when the user presses the
* arrow keys. This will be positive.
*/
public int getKeyProgressIncrement() {
return mKeyProgressIncrement;
}
@Override
public synchronized void setMax(int max) {
super.setMax(max);
if ((mKeyProgressIncrement == 0) || (getMax() / mKeyProgressIncrement > 20)) {
// It will take the user too long to change this via keys, change it
// to something more reasonable
setKeyProgressIncrement(Math.max(1, Math.round((float) getMax() / 20)));
}
}
@Override
protected boolean verifyDrawable(Drawable who) {
return who == mThumb || super.verifyDrawable(who);
}
@Override
protected void drawableStateChanged() {
super.drawableStateChanged();
Drawable progressDrawable = getProgressDrawable();
if (progressDrawable != null) {
progressDrawable.setAlpha(isEnabled() ? NO_ALPHA : (int) (NO_ALPHA * mDisabledAlpha));
}
if (mThumb != null && mThumb.isStateful()) {
int[] state = getDrawableState();
mThumb.setState(state);
}
}
@Override
void onProgressRefresh(float scale, boolean fromUser) {
Drawable thumb = mThumb;
if (thumb != null) {
setThumbPos(getHeight(), thumb, scale, Integer.MIN_VALUE);
/*
* Since we draw translated, the drawable's bounds that it signals
* for invalidation won't be the actual bounds we want invalidated,
* so just invalidate this whole view.
*/
invalidate();
}
}
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
Drawable d = getCurrentDrawable();
Drawable thumb = mThumb;
int thumbWidth = thumb == null ? 0 : thumb.getIntrinsicWidth();
// The max height does not incorporate padding, whereas the height
// parameter does
int trackWidth = Math.min(mMaxWidth, w - mPaddingRight - mPaddingLeft);
int max = getMax();
float scale = max > 0 ? (float) getProgress() / (float) max : 0;
if (thumbWidth > trackWidth) {
int gapForCenteringTrack = (thumbWidth - trackWidth) / 2;
if (thumb != null) {
setThumbPos(h, thumb, scale, gapForCenteringTrack * -1);
}
if (d != null) {
// Canvas will be translated by the padding, so 0,0 is where we start drawing
d.setBounds(gapForCenteringTrack, 0,
w - mPaddingRight - mPaddingLeft - gapForCenteringTrack,
h - mPaddingBottom - mPaddingTop);
}
} else {
if (d != null) {
// Canvas will be translated by the padding, so 0,0 is where we start drawing
d.setBounds(0, 0, w - mPaddingRight - mPaddingLeft, h - mPaddingBottom - mPaddingTop);
}
int gap = (trackWidth - thumbWidth) / 2;
if (thumb != null) {
setThumbPos(h, thumb, scale, gap);
}
}
}
/**
* @param gap If set to {@link Integer#MIN_VALUE}, this will be ignored and
*/
private void setThumbPos(int h, Drawable thumb, float scale, int gap) {
int available = h - mPaddingTop - mPaddingBottom;
int thumbWidth = thumb.getIntrinsicWidth();
int thumbHeight = thumb.getIntrinsicHeight();
available -= thumbHeight;
// The extra space for the thumb to move on the track
available += mThumbOffset * 2;
int thumbPos = (int) ((1-scale) * available);
int leftBound, rightBound;
if (gap == Integer.MIN_VALUE) {
Rect oldBounds = thumb.getBounds();
leftBound = oldBounds.left;
rightBound = oldBounds.right;
} else {
leftBound = gap;
rightBound = gap + thumbWidth;
}
// Canvas will be translated, so 0,0 is where we start drawing
thumb.setBounds(leftBound, thumbPos, rightBound, thumbPos + thumbHeight);
}
@Override
protected synchronized void onDraw(Canvas canvas) {
super.onDraw(canvas);
if (mThumb != null) {
canvas.save();
// Translate the padding. For the x, we need to allow the thumb to
// draw in its extra space
canvas.translate(mPaddingLeft, mPaddingTop - mThumbOffset);
mThumb.draw(canvas);
canvas.restore();
}
}
@Override
protected synchronized void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
Drawable d = getCurrentDrawable();
int thumbWidth = mThumb == null ? 0 : mThumb.getIntrinsicWidth();
int dw = 0;
int dh = 0;
if (d != null) {
dw = Math.max(mMinWidth, Math.min(mMaxWidth, d.getIntrinsicWidth()));
dw = Math.max(thumbWidth, dh);
dh = Math.max(mMinHeight, Math.min(mMaxHeight, d.getIntrinsicHeight()));
}
dw += mPaddingLeft + mPaddingRight;
dh += mPaddingTop + mPaddingBottom;
setMeasuredDimension(resolveSize(dw, widthMeasureSpec),
resolveSize(dh, heightMeasureSpec));
}
@Override
public boolean onTouchEvent(MotionEvent event) {
if (!mIsUserSeekable || !isEnabled()) {
return false;
}
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
setPressed(true);
onStartTrackingTouch();
trackTouchEvent(event);
break;
case MotionEvent.ACTION_MOVE:
trackTouchEvent(event);
attemptClaimDrag();
break;
case MotionEvent.ACTION_UP:
trackTouchEvent(event);
onStopTrackingTouch();
setPressed(false);
// ProgressBar doesn't know to repaint the thumb drawable
// in its inactive state when the touch stops (because the
// value has not apparently changed)
invalidate();
break;
case MotionEvent.ACTION_CANCEL:
onStopTrackingTouch();
setPressed(false);
invalidate(); // see above explanation
break;
}
return true;
}
private void trackTouchEvent(MotionEvent event) {
final int height = getHeight();
final int available = height - mPaddingTop - mPaddingBottom;
int y = height - (int)event.getY();
float scale;
float progress = 0;
if (y < mPaddingBottom) {
scale = 0.0f;
} else if (y > height - mPaddingTop) {
scale = 1.0f;
} else {
scale = (float)(y - mPaddingBottom) / (float)available;
progress = mTouchProgressOffset;
}
final int max = getMax();
progress += scale * max;
setProgress((int) progress, true);
}
/**
* Tries to claim the user's drag motion, and requests disallowing any
* ancestors from stealing events in the drag.
*/
private void attemptClaimDrag() {
if (mParent != null) {
mParent.requestDisallowInterceptTouchEvent(true);
}
}
/**
* This is called when the user has started touching this widget.
*/
void onStartTrackingTouch() {
}
/**
* This is called when the user either releases his touch or the touch is
* canceled.
*/
void onStopTrackingTouch() {
}
/**
* Called when the user changes the seekbar's progress by using a key event.
*/
void onKeyChange() {
}
@Override
public boolean onKeyDown(int keyCode, KeyEvent event) {
int progress = getProgress();
switch (keyCode) {
case KeyEvent.KEYCODE_DPAD_DOWN:
if (progress <= 0) break;
setProgress(progress - mKeyProgressIncrement, true);
onKeyChange();
return true;
case KeyEvent.KEYCODE_DPAD_UP:
if (progress >= getMax()) break;
setProgress(progress + mKeyProgressIncrement, true);
onKeyChange();
return true;
}
return super.onKeyDown(keyCode, event);
}
}
프로그래스바를 세로로 만들뿐인데 상당히 복잡하다.. 이 안에 내용에 대해선 각자 분석해 보길 바란다. 본인도 그저 가져다 쓸 뿐이므로. 그리 고민하지 않았다.. 기능에 대해 자세한 설명은 Comment 로 남겨 주면 매우 감사~~ 이제 위 화면을 띄우기 위한 Activity에 대해 설명하겠다. 먼저 세로로 그릴 Progress 내의 커스터 마이징은 xml로 하였다. progress_vertical.xml 이 XML을 이용하여 뒷부분의 색과 안에 채워질 Bar에 대한 컬러를 정의한다. View로 쓰일 XML 화면을 만든 XML이다. main.xml
마지막으로 이 뷰를 사용한 Activity 사용하 실 분들은 위의 클래스들을 만들어 놓고 이 Activity에 대해서만 수정하면 손쉽게 이용 할 수 잇다. VerticalSlidebarExampleActivity.Javaandroid:layout_height="fill_parent">
package com.ememomo.tistory;
import com.tokaracamara.android.verticalslidevar.R;
import android.app.Activity;
import android.os.Bundle;
import android.widget.SeekBar;
import android.widget.TextView;
import android.widget.SeekBar.OnSeekBarChangeListener;
public class VerticalSlidebarExampleActivity extends Activity {
TextView txt_Progress;
TextView txt_HorizonProgress;
VerticalSeekBar vertical_SeekBar;
SeekBar horizon_SeekBar;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
txt_Progress = (TextView)findViewById(R.id.progress);
vertical_SeekBar = (VerticalSeekBar)findViewById(R.id.vertical_seekbar);
txt_HorizonProgress = (TextView)findViewById(R.id.horizon_progress);
horizon_SeekBar = (SeekBar)findViewById(R.id.horizontal_seekbar);
vertical_SeekBar.setMax(100);
vertical_SeekBar.setProgress(30);
txt_Progress.setText("Progress is : " + vertical_SeekBar.getProgress());
vertical_SeekBar.setOnSeekBarChangeListener(new VerticalSeekBar.OnSeekBarChangeListener() {
@Override
public void onStopTrackingTouch(VerticalSeekBar seekBar) {
}
@Override
public void onStartTrackingTouch(VerticalSeekBar seekBar) {
}
@Override
public void onProgressChanged(VerticalSeekBar seekBar, int progress,
boolean fromUser) {
txt_Progress.setText("Progress is : " + vertical_SeekBar.getProgress());
}
});
horizon_SeekBar.setMax(100);
horizon_SeekBar.setProgress(50);
txt_HorizonProgress.setText("Progress is : " + horizon_SeekBar.getProgress());
horizon_SeekBar.setOnSeekBarChangeListener(new OnSeekBarChangeListener() {
@Override
public void onStopTrackingTouch(SeekBar arg0) {
// TODO Auto-generated method stub
}
@Override
public void onStartTrackingTouch(SeekBar arg0) {
// TODO Auto-generated method stub
}
@Override
public void onProgressChanged(SeekBar arg0, int arg1, boolean arg2) {
txt_HorizonProgress.setText("Progress is : " + horizon_SeekBar.getProgress());
}
});
}
}
답변을 못드린점 죄송합니다~~.
소스를 퍼가시는 분들은 댓글 매너를 지켜 주세요 ㅎ
VerticalSlidebarExample.zip
